EPSON T3200 Printhead
Compatible with All Chinese Brand Printers
Technical Support for Installation & Maintenance
Total Solution for related accessories.
Save your money with our professional work!

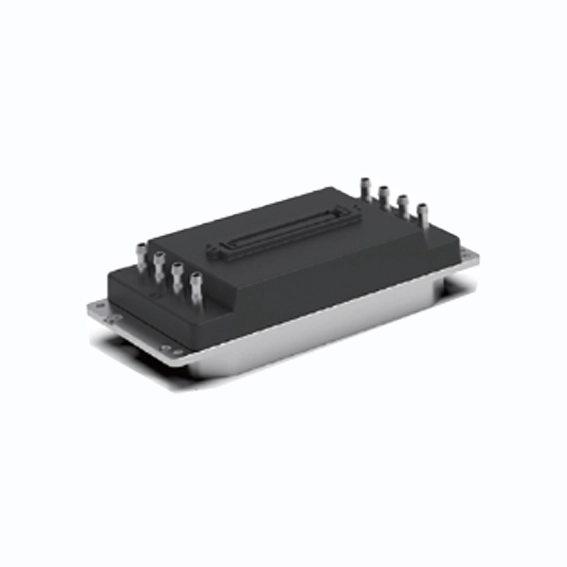

EPSON T3200 Printhead
Original products of EPSON
The latest inkjet printhead for UV printing Solutions!
Features:
High-speed printing enabled by a wider effective print width
Whereas Epson's current four-color printhead, the I3200, has an effective print width of 33.8 mm (1.33 inches), the T3200 and T1600 have an effective print width nearly double that, at 67.2 mm (2.65 inches). Furthermore, the T3200 and T1600 have a different type of piezoelectric actuator than the I3200 to enable the ejection of larger ink droplets at higher frequencies. This facilitates faster printing without compromising the high image quality and easy installation for which the I3200 is known.
A built-in heater for greater UV ink compatibility
The T3200 and T1600 are the first printheads in the Epson PrecisionCore series to have a built-in heater. The heater makes it possible to eject UV inks of various viscosities, expanding the range of applications, especially for signage and product packaging.
A variety of printers can be developed by combining the T3200 and T1600
The four-color T3200 and the two-color T1600 can be flexibly arranged to enable customers to develop many different types of printers with different numbers of colors and speeds. For example, the T3200 can be equipped with CMYK ink and the T1600 can be equipped with special inks such as white and varnish.
Product Specifications
|
Product Name |
EPSON T3200 |
|
|
Ink Type |
UV |
|
|
Width x Depth x Height * |
113.4 × 52 × 30.35 mm |
|
|
Weight * |
328g |
|
|
Number of nozzle |
3200 |
|
|
Nozzle pitch / nozzle row |
1/300 inch |
|
|
Nozzle rows |
4 rows |
|
|
Nozzle Resolution |
300 dpi / 4 colors 600 dpi / 2 colors |
|
|
Max. number of color inks |
4 colors |
|
|
Effective print width |
67.2 mm (2.65 inches) |
|
|
Droplet ejection performance * |
Binary |
7.5pl 48 kHz (Single mode) |
|
|
|
|
|
4 levels grey scale |
6.2, 9.5, 15.6pl at 24 kHz |
|
|
Viscosity range * |
7-8mPa.s |
|
|
Ink recirculation |
No recirculation. |
|
|
Internal heater |
YES |
|
|
Positioning Mechanism |
Reference hole |
|
|
lifetime |
106 billion jetting; 1500 times Cleaning under 40KPa |
|
|
Country of Original |
Japan |
|
*Epson's unique waveform design allows for a variety of greyscale and droplet size combinations.
*Product Specifications and document description are subject to change without notice.
Printer Compatibility:
Support All the Chinese Brand Printers who use the EPSON T3200 printhead, such as: Flora, GONGZHENG, XENONS, etc. For Details you can consult us directly.
The other parts related with this printhead, such as electronic boards, filters, dampers, capping station, data cables, inks, etc. you can also email us for the best.
Technical Support:
All products we sell the key is technical support.
Technical support for the installation & Maintenance.
Technical consult is always free.
Total solution for your business, saving your money with our professional works.
