EPSON S3200 Printhead
Compatible with All Chinese Brand Printers
Technical Support for Installation & Maintenance
Total Solution for related accessories.
Save your money with our professional works!

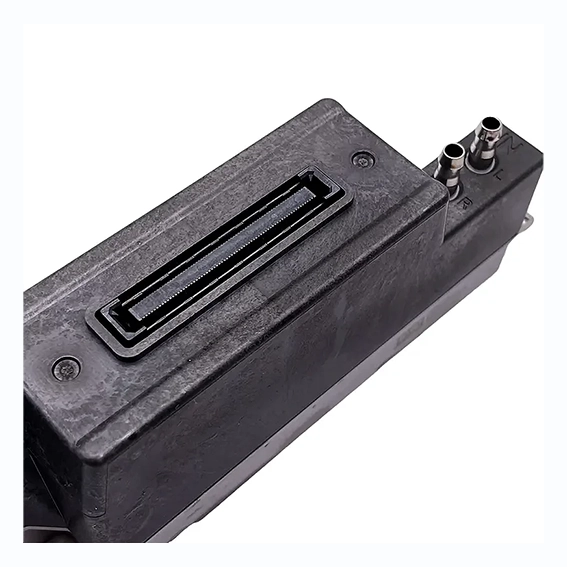

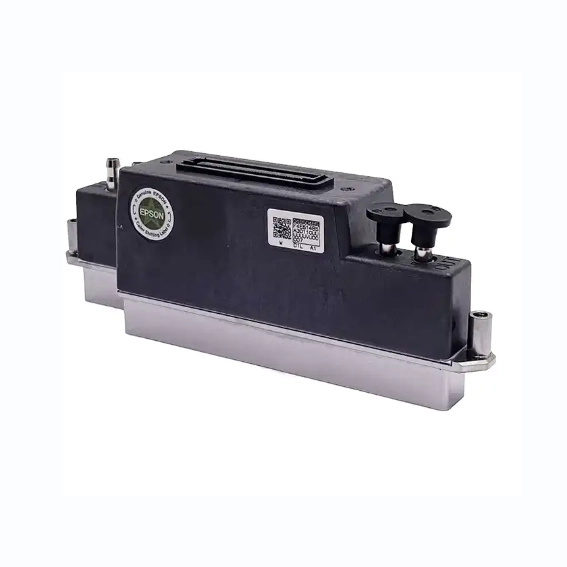

EPSON S3200 Series Printhead
Original products of EPSON
4 inch Inkjet Printhead for High Speed and High Quality Printing Solutions!
Features:
1. PrecisionCore Technology
All MEMS manufacturing and thin film piezo element can realize high precision and high density (600npi/2 rows of nozzles). Contributes to miniaturization, high speed, high quality, and high image quality.
Precision made of Epson unique MEMS nozzles and an ink flow path ensure the perfectly round ink droplets are placed accurately and consistently.
2. Support for grey-scale
Epson's unique Variable Sized Droplet Technology (VSDT) delivers smooth gradation by freely control to eject the droplet volume.
3. High Productivity
The wide printing width of 120.2mm (4.73 inches) is excellent for high production. Minimum-pass printing is possible because there is very little variation between nozzles.
4. Scalability
Highly scalable S-shape design can realize space-saving for increasing productivity and multi-colours. Contributes to miniaturize the printer.
5. Maintainence
A high-precision positioning hole allow the user to replace the head quickly and efficiently without further adjustments.
6. High durability
PrecisionCore printhead has proven high durability and extended service life by Epson's industrial printers.
Product Specifications
|
Product Name |
S3200-U1 |
S3200-U3 |
S3200-A1 |
S3200-A3 |
|
|
Ink Type |
UV/Eco Solvent |
Aqueous |
|||
|
Width x Depth x Height * |
150.4 × 30 × 52 mm |
||||
|
Weight * |
235 g |
||||
|
Number of nozzle |
3200 (Net: 2840) |
||||
|
Nozzle pitch / nozzle row |
1/300 inch |
||||
|
Nozzle rows |
2 rows |
||||
|
Nozzle Resolution |
300 npi/row 600 npi/2 rows |
||||
|
Max. number of color inks |
2 colors |
||||
|
Effective print width |
120.2 mm (4.73 inches) |
||||
|
Droplet ejection performance * |
Binary |
3.2pl 48 kHz |
4.8pl at 48KHz |
3.3pl at 48KHz |
5pl at 48KHz |
|
3 levels grey scale |
3.2,5,10pl |
4.8,9,15pl at 24KHz |
3.3,7,13pl at 24KHz |
5,9,18pl at 24KHz |
|
|
Viscosity range * |
8-11mPa.s |
8-9mPa.s |
3-4mPa.s |
5-7mPa.s |
|
|
Ink recirculation |
Reservoir circulation |
||||
|
Internal heater |
NO |
||||
|
Positioning Mechanism |
Reference hole |
||||
|
lifetime |
106 billion jetting; 1500 times Cleaning under 40KPa |
||||
|
Country of Original |
Japan |
||||
*Epson's unique waveform design allows for a variety of greyscale and droplet size combinations.
*Product Specifications and document description are subject to change without notice.
Printer Compatibility:
Support All the Brand Printers which use the S3200 series printhead, such as: Flora Textile Printer, Sublimation printer, Label Printer; Coltex Sublimation Printer, Textile printer; Fedar sublimation printer; Grando, Keundo, Oric, XLF, DPI, YSR printers, JHF UV printer, etc. Also the Monalisa Textile printer. For Details you can consult us directly.
The other parts related with this printhead, such as electronic boards, filters, dampers, capping station, data cables, inks, etc. you can also email us for the best.
Technical Support:
All products we sell the key is technical support.
Technical support for the installation & Maintenance.
Technical consult is always free.
Total solution for your business, saving your money with our professional works.
