C8-TS900 8 heads Sublimation Textile Printer

8 heads Sublimation Textile Printer

Printhead: 8*EPS3200 ( 8 Epson i3200 )
Printhead Resolution: 3200DPI
Printing Speed: 260sqm/h
Print Width:2200mm
Ink: Dye Sublimation Ink,Pigment Ink
Media:Transfer Paper ,Poster Paper
RIP Software: Maintop, Photoprint,Neostampa,Onyx,etc.

	High Precision Printhead
	8 Epson i3200 printhead,2 pass speed can reach up to 260㎡/h

	Fiber Data Data processing
	the most reliable and fast speed fiber data system

	Advanced Precision Head maintenance system
	Equipped with advanced intelligent auto printhead cleaning and capping System, One time cleanning

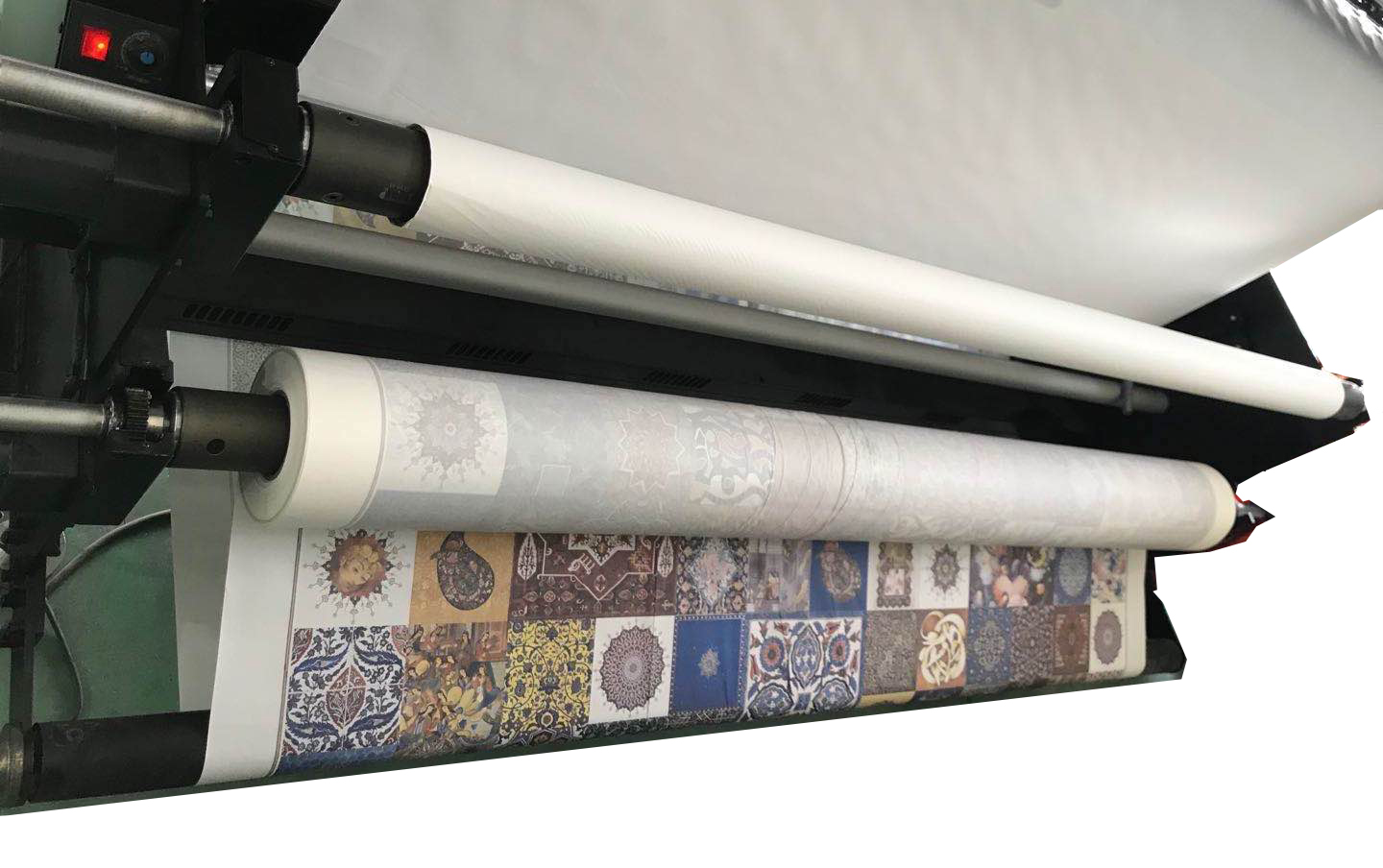

	Heavy Duty feeding and taking up system
	The system suitable for small roller to jumbo roller .

	Media System
	A media system which support low GSM paper running without attention.

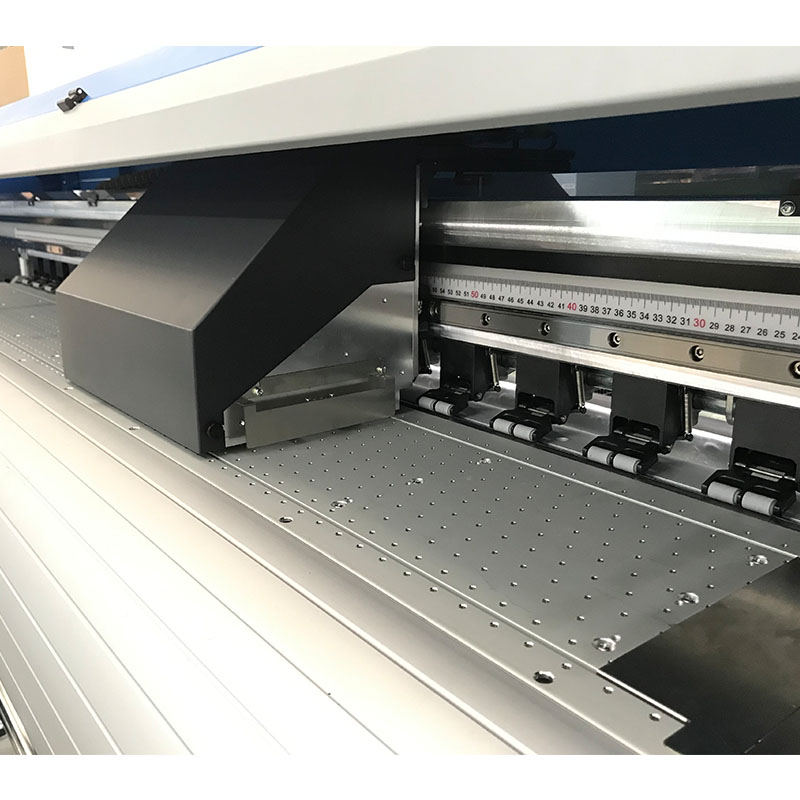

	Robust Carriage with head protection
	Smart head protection system can avoid any damaged result due to wrong operation.

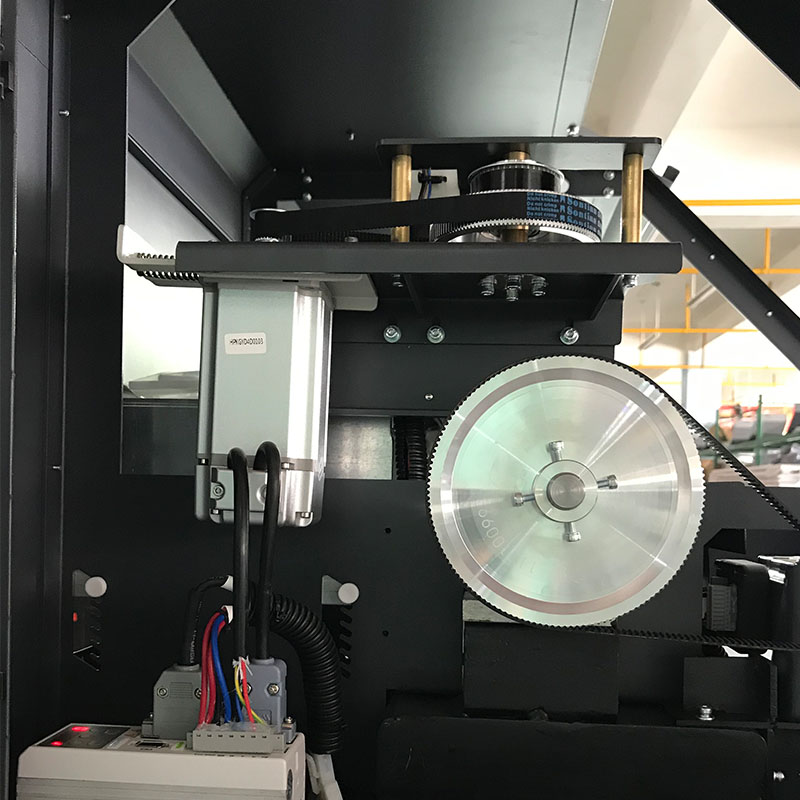

	Servo Motor System
	Servo motor is a heavy duty machine standard configuration, Make sure the precision and stable running

	Ink Alarming System in bulk tank
	Do not worry the damage caused by ink finished without notice, the alarm system will ask you to fill the ink before that happen.

	Staggered Printhead
	3 Epson3200 printhead configured in the staggered rows, with easy alignment

Intergrated Heating and cooling system

The machine intergrated the heating and cooling system with a smart software control.

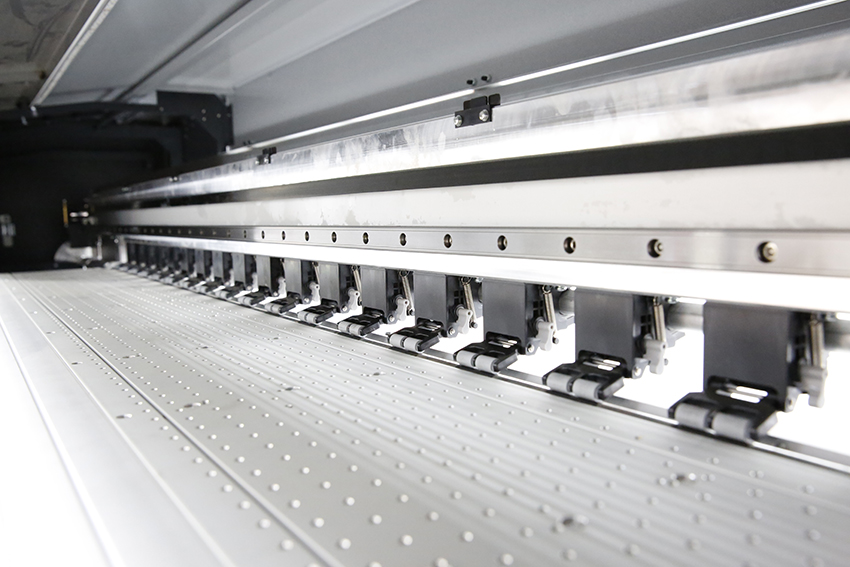

Adjustable Pinch Roller

Printlinks Patended adjustable pinch roller prevents static electricity from flying ink, prints more accurately and rejects wrinkles

Advanced Scientific management system

Experienced by innovated teams, make sure the printer quality and service best in Class.

Dye-Sublimation Textile Printer Technical Specifications:
Model	TS900
Print Width	2200mm
Printhead	Advanced EPSON Printhead; 800 nozzles each color ( x 4) i3200; EPSON DX5
Droplet Tech.	Smallest 3.5 picoliters, and Variable dropsize up to 35pl.
	EPSON i3200  (8H)
Max Speed(1 Pass)	320 m²/h
Quality (2 Pass)	260 m²/h
Fine Art (3 Pass)	160  m²/h
Note: The printer support many passes or print mode, The above list are those use popular, the speed will be different based on the media width, PC and other settings.
Color Configuration 1
Color Configuration 2
Resolutions	360 x 600 dpi; 360 x 1200 dpi;360 x 1800 dpi;360 x 2400 dpi;360 x 3600 dpi;360 x 4800 dpi;
RIP Software	All other RIP software also Open
Material Transport	Integrated auto feeding and dual motor taking up system;Heavy Duty System
Roll Diameter	Inner:76.2mm(3inch); Outer:855mm(340inch);
Roll Weight	500Kg
Thickness	2mm or less; Head gap adjustable;
Material Support	Sublimation Paper 25g/ m2 or heavier ;Optional: Direct print on coated and uncoated polyester fabric with a polyester percentage of more than 50%.Other fiber mixtures can  be printed, with some restrictions
Dryer	Heated Printing Table and Infrared Drying combine with Cooling Fans
No. of Inks	Dye Sublimation-Ink set: CMYK or  Fluorescence Yellow, Magenta.
Ink System	3L Ink bulk System with ink cartridge
compatible Operating Systems	Windows 10 (32/64  bit), Windows 7 (32/64  bit), Windows 8 (32/64  bit), Windows 8.1 (32/64  bit)
Connectivity	USB: High Speed USB  3.0
Power	Single Phase AC 200-240V 50/60Hz; 1500W or less;
Package (W*D*H mm）	4260*1760*11925mm
Printer (W*D*H mm）	3910*1500*1840mm
Weight (kg)	720
Warranty	One Year Standard, Please consult the local partner for details.

Please note: Considering that you will be using software such as Illustrator, we recommend that you use as high performance computer as possible to reduce RIP processing time.
We also recommend using a hard disk that has large enough capacity, as print files are often tens of GB in size (or larger) when data is high resolution.
